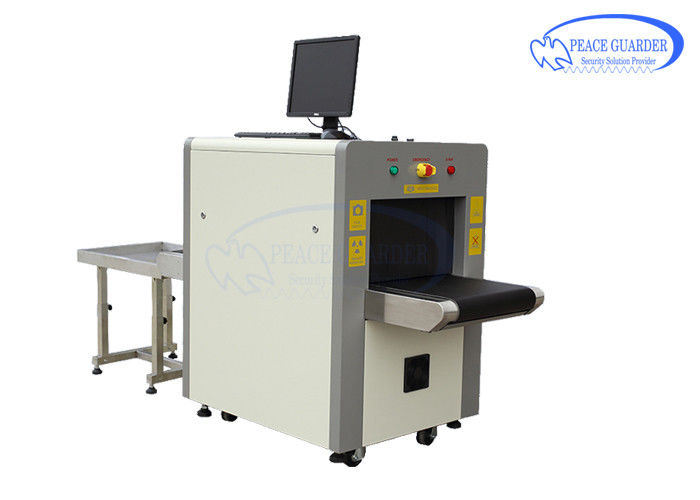

    Model 5030A X Ray Baggage Checking Machine For Bus / Railway / Subway Station

    Ask Lasest Price
    Brand Name : PEACE GUARDER
    Model Number : SD-5030A
    Certification : CE, ROHS, ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300UNITS PER MONTH
    Delivery Time : About 3-7 Working days after received the payment
    • Product Details
    • Company Profile

    Model 5030A X Ray Baggage Checking Machine For Bus / Railway / Subway Station

    Hotel / Exhibition X Ray Baggage Scanner with Tunnel Size 500 * 300 mm


    Applications:

    Airports,

    Transport terminals,

    Buildings,

    Factories (to find needle in clothing, shoes, bags),
    Courthouses,
    Embassies,
    Military installations,

    Prisons,
    Hotels,
    Schools ,

    Convention centers,
    Security checkpoints,

    Special events location


    Competitive Advantage:

    Integrated, cost Effective, Turn-Key Security

    Fit for small Baggage and Parcel Security Inspection.

    Increased detection capability

    Friendly interface for ease-of-use

    Reliable performance and uncompromising value


    Specifications:


    Tunnel Size:500(W)*300(H)mm
    Conveyor Speed:0.22m/s
    Conveyor Max Load:100kgs
    Dose per Inspection:<2.9 μGy/h
    Resolution:<0.101mm Metal Wire
    Penetration:10mm Steel
    Film Safety:Guarantee ISO1600 Film
    X-ray Leakage:<0.05 μGy/h (at a distance of 5cm From external housing)
    Generate direct:Upward
    Generate angle:60 degree
    Anode Voltage:70Kv
    Anode power:0.4 to 0.5mA
    Cooling / Duty Cycle:Oil Cooling /100%
    X-ray Sensor:L-Shaped Photodiode Array (mono-energetic), 12bit Deep
    Monitor:High Resolution Color, LCD Accord, 17 inch
    Image Processing:

    Edge enhancement, image strengthening, image lightening,

    reducing darkening, image returning, image retrieval.

    Image Grey Level:4096
    Image Max Resolution:1024 * 1280 pixel
    Image Processing:24bit for processing real time
    Image storage:Storage 60000 pictures in real time
    Zones & Zoom:

    1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen

    continuous observation

    Operation temperature/Humidity:0℃-45℃/20%-95%(non-condensing)
    Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
    Operation Power:220VAC(±10%)50±3Hz
    Power Consumption:1.0 KW (max), 0.3KW(working)
    Noise:<65db

    Image System


    X-ray Sensor:L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
    Monitor:High Resolution Color, LCD Accord, 17 inch
    Detector:2
    Color display:full color
    Image Processing:

    Edge enhancement, image strengthening,

    image lightening,reducing darkening, image returning, image retrieval

    Image Grey Level:4096
    Image Max Resolution:1024 * 1280 pixel
    Image Processing:24bit for processing real time
    Image storage:Storage 60000 pictures in real time
    Zones & Zoom:

    1-9 Image regions, 2,4,8,16 Times Enlarge,

    Whole screen continuous observation

    Multi-energetic

    distinguish objects:

    organic objects in orange,inorganic objects in blue, mixture in green
    High-energy/low energy:switch from high energy to low energy

    Installation Data

    • Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
    • Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
    • Operation Power:220AVC/(±10)50Hz±3Hz
    • Power Consumption:1.0KW(Max)
    • Noise: <65 dB

    Model: SD-5030A

    Feature and Application:


    X-ray penetrate inspection, the object can be found within the metal structure, can display the naked eye

    can not see where the liquid is also very obvious object display.Used in the factory testing of security

    products and business units such as: electronic factories, shoe factories, toy factories, courts, railway

    stations, and event bag, line security management package.


    Payment and shippment:

    Payment term
    T/T directly,L/C formally, Escrow conventient, Western union etc.
    Shipping methods
    by air3-5 days, most expensive
    by express5-7 days, more expensive
    by sea15-28 days, cheapest
