    High Penetration X Ray Luggage Scanner With Automatic Self Diagnosis Function

    Ask Lasest Price
    Brand Name : PeaceGuarder
    Model Number : SD-6040
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, Western Union
    Supply Ability : 1000Units per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    High Penetration X Ray Luggage Scanner With Automatic Self Diagnosis Function

    High Penetration X-Ray Security Inspection Detector Bags Scanner


    X-ray baggage scanners operate based on the x-ray penetration principle. Widely used in national security, which covers the national research institutions, detection centers, courts, prisons, procuratorates, Army, airports, subway and railway stations, docks, schools, embassies, tourist attraction, logistics, big events etc.


    Details


    General Specifications

    Dimensions: 1845(L)×865mm (W)×1313mm (H)

    Tunnel size: 615mm (W)×454mm (H)

    Conveyor speed: 0.20 m/s

    Conveyor height: 700mm

    Weight: 354Kg

    Storage temperature / humidity:

    -40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)

    Operating temperature / humidity:

    0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)

    Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz

    Power consumption: 0.5kVA


    Basic Specifications

    Penetration: 30mm Steel Plate(140kV)

    38mm Steel Plate(160KV)

    Wire resolution: 40AWG

    Penetration resolution: 32AWG

    Spatial resolution: horizontal

    Ф1.0mm vertical Ф1.0mm


    X-ray Generator

    Generation direction: Bottom-Up

    Tube voltage: 140~160kV Adjustable

    Tube current: 0.4~0.7mA Adjustable

    Cooling/ duty cycle: sealed oil / 100%

    Generation angle: 80 °


    Configuration

    International brand electrical components

    Industrial PLC circuit control,

    Capacitance integral analog conversion, clear image

    Industrial computer, long-term stable and reliable system

    Ergonomic principle reading system,

    Radiation protection system (close to natural background)

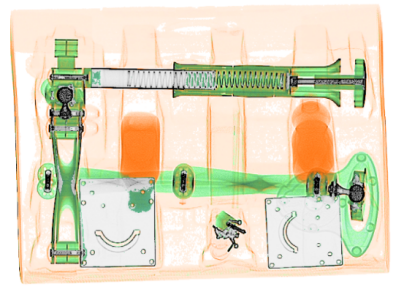

    Image Processing:

    l Color / black&white,

    l Organic / inorganic,

    l Super enhancement,

    l Edge enhancement,

    l Partial enhancement,

    l Grayscale scanning,

    l Image restoration,

    l Zoom in / out,

    l High / low energy penetration,

    l Continuous observation,

    l Playback (50),

    l Image storage(>10 w pic.)

    Others:

    l One key shut-down,

    l High density alarm,

    l Drug and explosive powder detection

    l Built-in Automatic self-diagnosis
